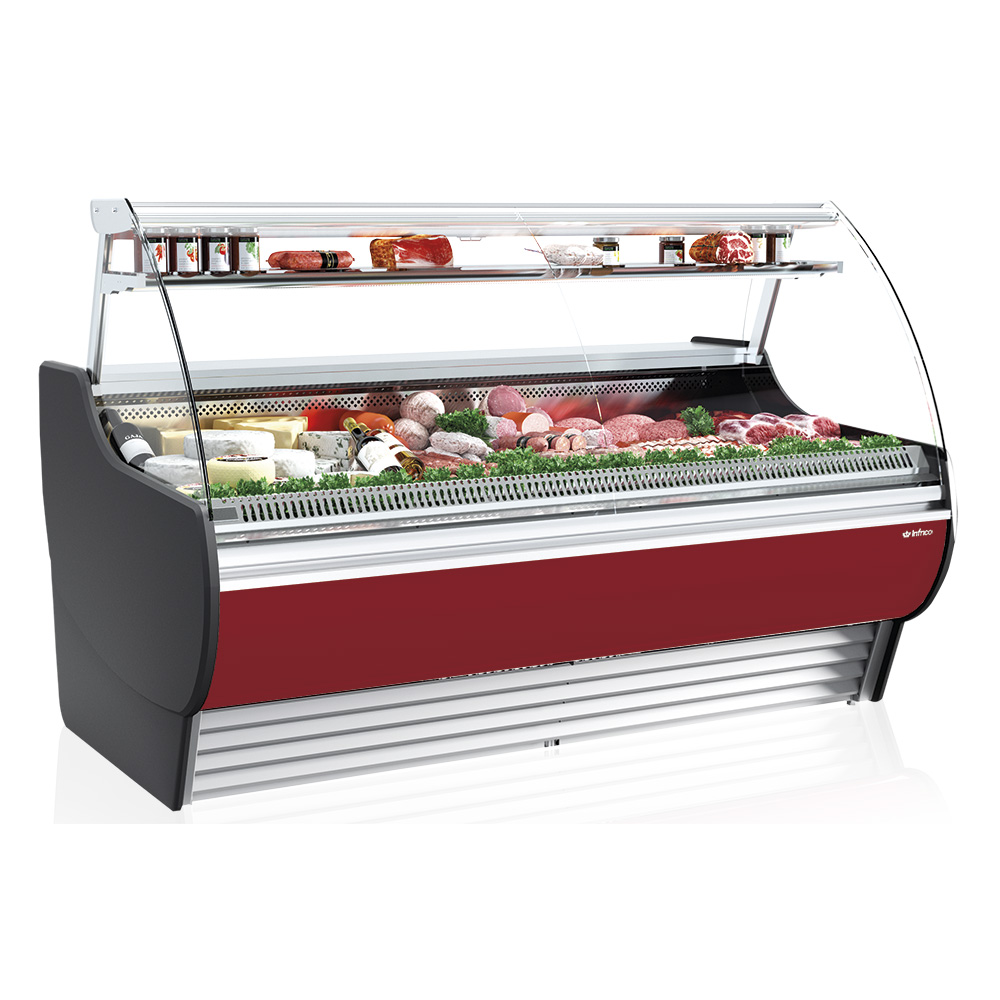

Madrid plug in counters are a range of cases with rear glass structure that include intermediate shelves with LED lighting to enhance the total visibility of the exposed product. Specially designed for the areas of sale of charcuterie, delicatessen and cheeses.
They offer an excellent implementation flexibility to put them where, how and when you want.
In its wide range of products you can find models with and without refrigerated reserves, all of them with a rear glass structure. You can also incorporate angles and neutral modules non-cooling. There are a wide range of options and accessories. Its wide exposure area of 810 mm and its intermediate shelf help expose the product to highlight its quality
General Strengths
Combination of different cooling system modules: ventilated, half-static and static.
Modules with or without cooled storage.
Angles and counters to adapt the line to a space.
Greater precision in temperature control.
Easier to adjust the temperature range we want to achieve.
All condenser units are tested 100%, in helium chambers to refrigerant leak detections.
LED lighting incorporated, reducing energetic consumption between 80% and 90% respect to a traditional light bulb.
Infrico is AENOR audited and certified by internationally recognized firm.
ISO 9001:2015(Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety).
Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7.
Key Features:
Modular line
Different cooling system modules can be combined using complete dividers.
Designed for meat and precooked and packaged foods, charcuterie, milk products and sandwiches.
Exterior
Plastic coated steel exterior.
AISI 304 stainless steel worktop.
AISI 304 stainless steel exposure surface.
Lacquered DM decoration.
Folding secured curved glass.
Interior
Plastic coated steel interior.
Enameled steel base.
LED lighted middle shelf and exposure surface.
Storage door clearance of 425x255 mm.
Insulation Insulation by free CFC’s polyurethane, foam high-pressure injected with density 40 Kg/m3
Zero ODP and Low GWP.
Refrigeration
Temperature and defrost regulated by a digital controller.
Automatic defrost.
Ventilated condensation system.
Forced evaporation system.
Stainless steel evaporative tray with double vat, one for hot gas and another with electrical heater.
Climatic class 4 (30ºC, 55%RH).
Specifications:
Dimensions: L1875 x D1150 x H1290mm
Weight: 275kg
Side thickness: 30 + 30 mm
Doors: 3
Exposure surface: 1.04m2
Cabinet volume: 263 Lt
Gross volume: 2781 Lt
Temperature: 0ºC/+6ºC
Electrical connection : 230V/ 1ph/50Hz
Infrico
Infrico was born in 1986 with a clear objective: to generate the best cooling solutions adapted to the specific needs of each client. Technological vanguard, certified quality and the excellence of its products are the guarantees to support its commitment to innovation and that have positioned it as absolute leaders in the commercial refrigeration equipment.
