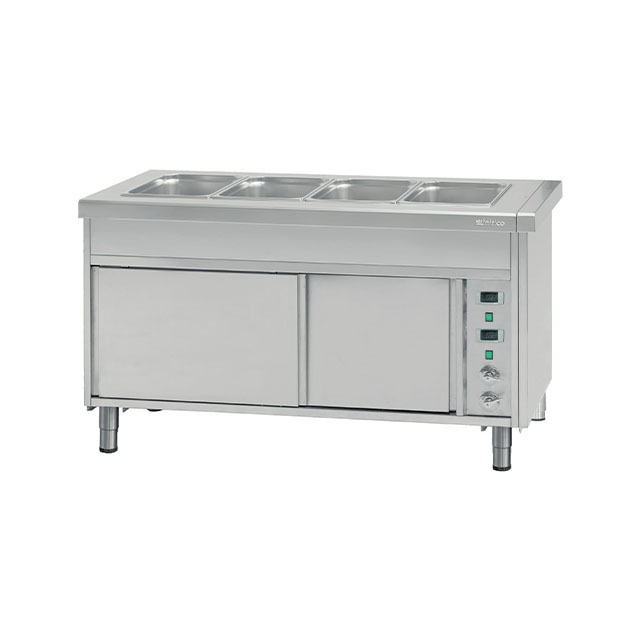

1500mm Bain Marie On Heated Cabinet

Indirect heating system by means of hidden elements. The bain marie temperature is regulated and controlled by means of a digital control, with an operating temperature of 30ºC to 90ºC. The store temperature is controlled by means of a separate thermostat, with an operating temperature of 30ºC to 70ºC. The lower hot store is equipped with a forced air ventilation system for a uniform temperature distribution

General Features

• Infrico Self-Service has been designed to allow food service in the smallest space possible, or the creation of independent zones depending on the type of food, so the user can freely serve himself without any queue.

•  Control systems. Higher precision in managing temperature settings.

• Greater ability to adjust of temperature ranges as per the end user’s requirement.

• Infrico is AENOR audited and certified by internationally recognized firm. ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety). Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7


Key Features:

• Exterior

• • AISI 304 Series Stainless Steel,

  • Height adjustable stainless steel legs,

  • Decorated in AISI 304 stainless steel.

  • Tray molded of a single part with rounded edges to assist cleaning and ensure hygiene, with capacity for 3, 4 or 6 GN 1/1 trays with a maximum 200 mm depth,

• Interior

• • AISI 304 Series Stainless Steel.

  • Interior with wide corners unions to

  • Facilitate cleaning,

  • Drain inside the cabinet.

  • Doors

  • he store has sliding doors,

• Regulation

• • The bain marie temperature is regulated and controller by means of a digital control, with an operating temperature of 30ºC to 90ºC defrost regulated by a digital controller

  • Indirect heating system by means of hidden elements

  • The store temperature is controlled by means of a separate thermostat with an operating temperature of 30ºC to 90ºC

  • The lower host store is equipped with a torced air ventilation systems for a uniform temperature distribution

  • Climatic class 4 (30ºC, 55%RH).

Specifications:

• Dimensions: L1500 x D800 x H900mm

• Weight: 126 kg

• Doors: 2

• Trays: 4 GN

• Chamber Volume: 436 Lt

• Gross Volume: 1080 Lt

• Temperature: +30ºC / +90ºC

• Electrical connection: 400V/ 3ph/50Hz

• Climate class: 4 (30ºC, 55%RH)

Infrico

Infrico was born in 1986 with a clear objective: to generate the best cooling solutions adapted to the specific needs of each client. Technological vanguard, certified quality and the excellence of its products are the guarantees to support its commitment to innovation and that have positioned it as absolute leaders in the commercial refrigeration equipment.
