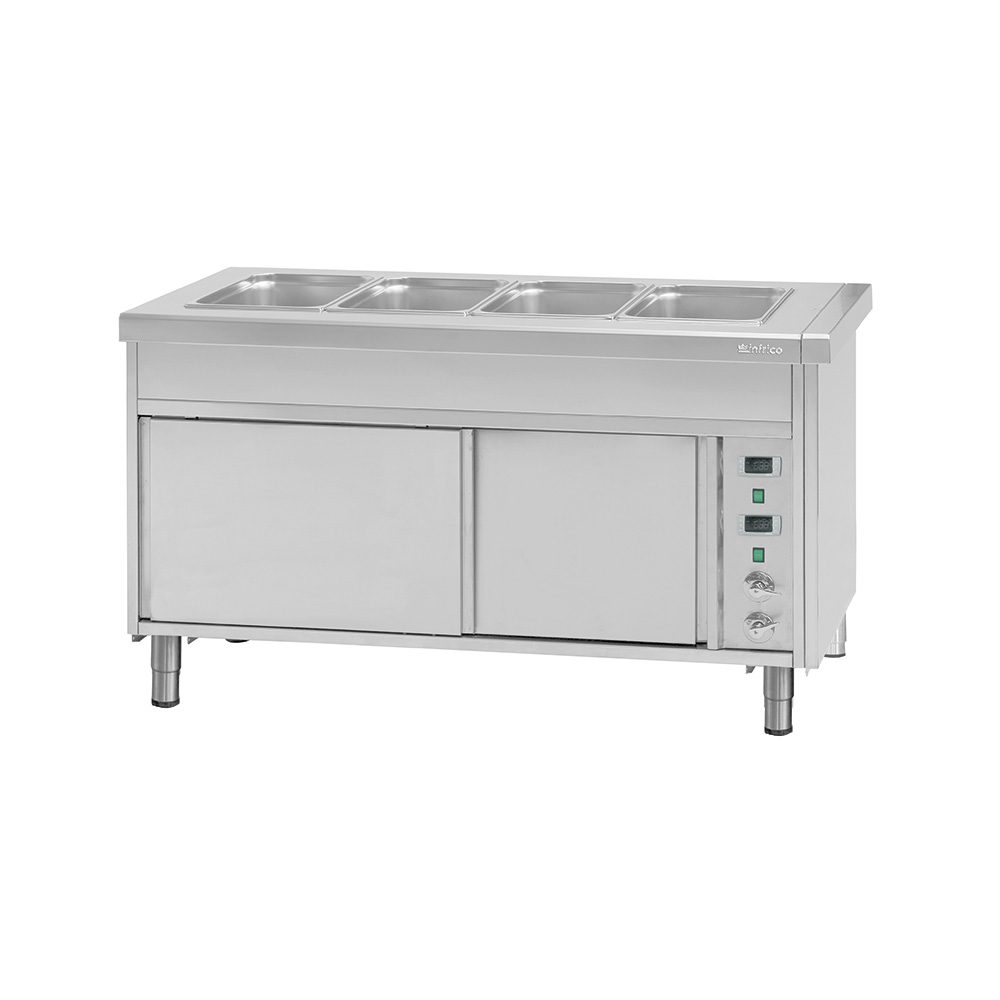

1125mm Bain Marie On Heated Cabinet

Infrico Self-Service has been designed to allow food service in the smallest space possible, or the creation of independent zones depending on the type of food, so the user can freely serve himself without any queue. This product is equip for hotels and cafeterias with very careful finishing's in the standard version and wide customization possibilities.

General Features

• Control systems.

• Higher precision in managing temperature settings.

• Greater ability to adjust of temperature ranges as per the end user’s requirement.

• Infrico is AENOR audited and certified by internationally recognized firm.

• ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety).

• Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7.

Key Features:

• Exterior

• • AISI 304 Series Stainless Steel

  • Height adjustable stainless steel legs

  • Decorated in AISI 304 stainless steel

  • Tray molded of a single part with rounded edges to assist cleaning and ensure hygiene, with capacity for 3, 4 or 6 GN 1/1 trays with a maximum 200 mm depth

• Interior

• • AISI 304 Series Stainless Steel

  • Interior with wide corners unions to facilitate cleaning

  • Drain inside the cabinet

• Doors

• • The store has sliding doors

• Regulation

• • The Bain Marie temperature is regulated and controller by means of a digital control, with an operating temperature of 30ºC to 90ºC defrost regulated by a digital controller

  • Indirect heating system by means of hidden elements

  • The store temperature is controlled by means of a separate thermostat with an operating temperature of 30ºC to 90ºC,

  • The lower host store is equipped with a forced air ventilation systems for a uniform temperature distribution,

  • Climatic class 4 (30ºC, 55%RH).

Specifications:

• Dimensions:  L1125 x D800 x H900 mm

• Weight: 104 kg

• Doors: 2

• Trays: 3 GN

• Chamber Volume: 308 Lt

• Grass Volume: 810 Lt

• Temperature: +30ºC /+90ºC

• Electrical Connection: 400V/ 3ph/50Hz
