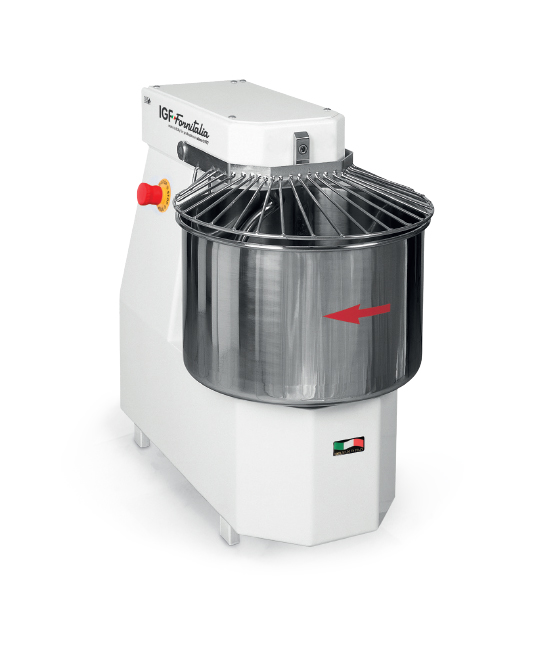

IGF Fix head spiral kneading machine 50Lt 2200/S42

Mechanical series

Stainless steel carpentry structure which grants stability to the kneading machine’s trim, also with the most challenging preparations

Stainless steel bowl, spiral and dough cutter, this last one with rectangular shape for an excellent preparation of the dough. Optimized mechanics thanks to a reduction gearbox in an oil bath

Appropriate spiral shape which follows the bowl’s linings and in right proportion bowl-spiral-dough cutter, in a perfect combination to obtain the desired dough, also in small quantities

Appropriate proportion of bowl’s and spiral’s rpm for an excellent dough preparation, reducing tangibly the heating

• Fixed Head Spiral Mixer
• Noiseless due to it’s compact mechanics (60dB Max)
• 2 power transformers: 1 on hook and 1 one bowl
• Special grid that allows the addition of extra ingredients during mixing
• Space saving design
• 3 protection systems, both active and passive, for complete operator safety during use, cleaning and maintenance
• In accordance with Worldwide Health and Safety Regulations

Spiral Dough Mixer 50L

• Capacity: 50 Litre
• Flour Weight: 22kg (With minimum 50% water content)
• Power: 415V 50Hz, Three Phase 10amp
• Speed: Dual Speed 1.7 / 2.5 Hp
• Dimension (mm): 530W x 850D x 710H
• Weight: 106 kg
